SIFER Reader Add-on Kit
Overview

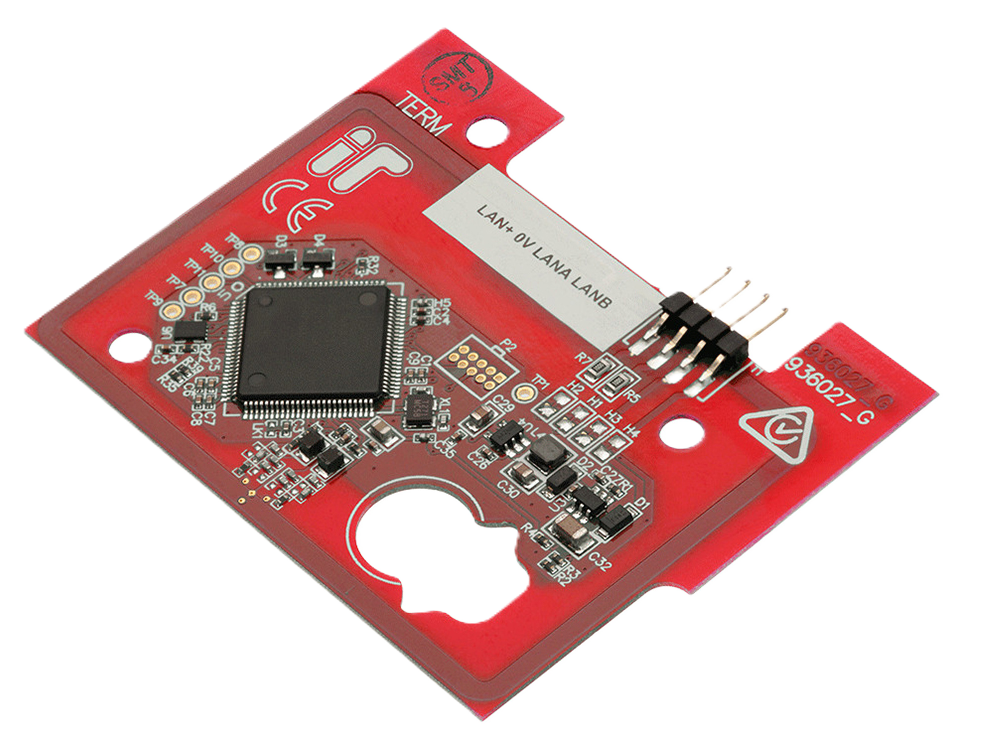

A plug-on SIFER reader board that allows an EliteX or PrismaX keypad to be used as a combined card reader and keypad for high-security authentication.
Key Specifications
- Credential Support: All SIFER credentials, 13.56MHz CSN.
- Integration: ACHIEVES “single” or “dual credential” (Card & PIN) login.
- Applications: Door access, keypad menu login, security area Arm/Disarm (including 3-badge arming).
Supported Platforms
- Integriti: V17.0.1 (EliteX) / V18.1 (PrismaX).
- Inception: V1.3.5 (EliteX only; PrismaX NOT supported).
Physical I/O
- Mounting: Internal plug-on kit for existing EliteX or PrismaX keypads.
Power Requirements
- Voltage: Powered from host keypad.
- Current: Up to 60mA additional current draw.
Compatible Firmware
- Refer to platform-specific version requirements above.
