Single Door Access Module
Overview
A cost-effective and space-saving single door module designed for small-scale access control or where installation space is limited. Supports one door and one Wiegand or magnetic swipe reader.
Key Specifications
- Door Capacity: 1 Door.
- Reader Capacity: 1 Wiegand or Magnetic Swipe reader.

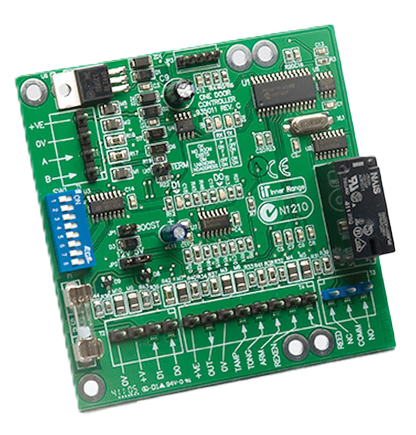

- Mounting: PCB only (95x95 mm).
- Protection: Fuse protection for reader power (500mA).
Supported Platforms
- Integriti Only
Physical I/O
- Inputs: 4 Zone Inputs (Predefined: Door Reed, REX/REN, Tongue Sense, Arm Button).
- Outputs: 1 On-board Lock Relay; 1 Auxiliary Output (Open Collector for Valid/Invalid indication or reader control).
- Readers: 1 Wiegand Reader port.
Power Requirements
- Voltage: 11V - 14V DC (Typically from separate power supply).
- Current: 15mA (Idle) / 25mA (Lock relay active).
Compatible Firmware
- Compatible with all current Integriti controllers via RS485 LAN.
