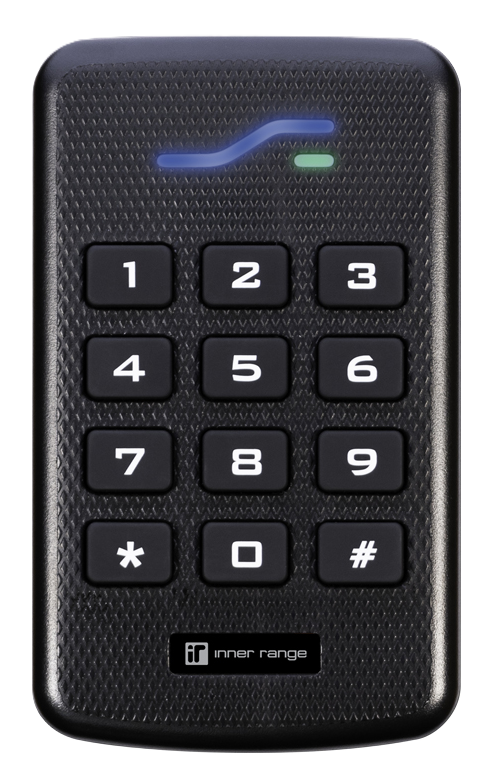

SIFER Keypad Smart Card Reader
Overview
A combined IP67-rated Keypad and Smart Card reader for high-security dual-credential (Card & PIN) access control. Utilizes 128-bit AES encryption through to the door module.
Key Specifications
- Formats: MIFARE DESFire EV1/EV2/EV3.
- Encryption: 128-bit AES.
- Protocol: RS485 LAN Multi-drop (OSDP).
- Multi-Format Version: Also available with support for 13.56MHz CSN reading from 3rd party cards.
Supported Platforms
- Integriti (up to 16 per IAC/ILAM, 4 per SLAM).
- Inception (up to 8 on-board).
Physical I/O
- Keypad: Backlit auto-dimming silicon rubber.
- I/O: RS485 LAN Reader LAN, Heartbeat Monitoring.
- Dimensions: 63(W) x 106(L) x 19(D) mm.
Power Requirements
- Voltage: 11V - 14V DC.
- Current: 65mA - 115mA (Typical), 165mA (Max).
Compatible Firmware
- Supports automatic reader discovery and global configuration updates.
