HID Hybrid Signo SIFER Reader
Overview
The Hybrid HID / Inner Range reader technology provides native support for over 15 credential technologies, including the AES-encrypted SIFER-P format, HID Mobile Access (NFC/BLE), and legacy 125kHz formats.
Key Specifications
- Communication Protocols: Wiegand, Clock-and-Data, and RS485 LAN OSDP.
- Credential Support: Seos, iCLASS (SE/SR/Legacy), MIFARE DESFire (EV1/EV2/EV3), SIFER-P, 125kHz (HID Prox, Indala, AWID, EM).
- Mobile Support: Apple Wallet (ECP), HID Mobile Access (BLE/NFC).
- Environmental: IP65, UL294 Outdoor/Indoor rated.
Supported Platforms
- Integriti
- Inception
Physical I/O

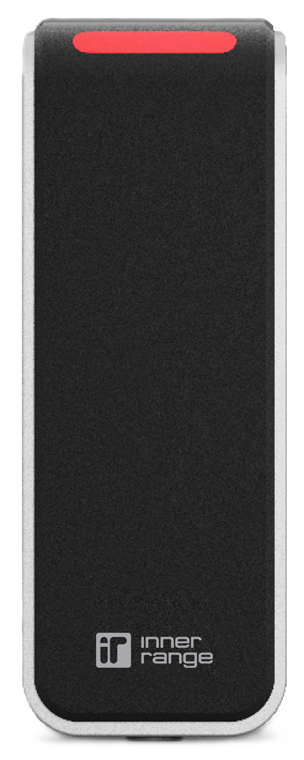

- Mounting: Mullion mount (HID-20 models) or Gang Box (HID-40 models).

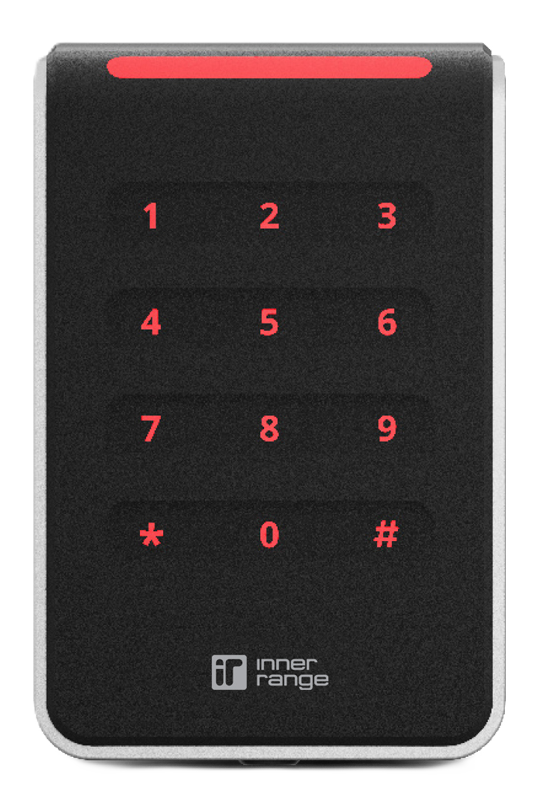

- Keypad: Available on “K” models (HID-20K / HID-40K).
- Outputs: Tamper Relay (0-60V DC @ 100mA max).
Power Requirements
- Voltage: 12V DC.
- Current (Standby): 60mA - 70mA depending on model.
- Current (Peak): 250mA.
Compatible Firmware
- Compatible with all OSDP or Wiegand-capable Inner Range controllers.
