1 Amp DPDT Relay Interface

Overview

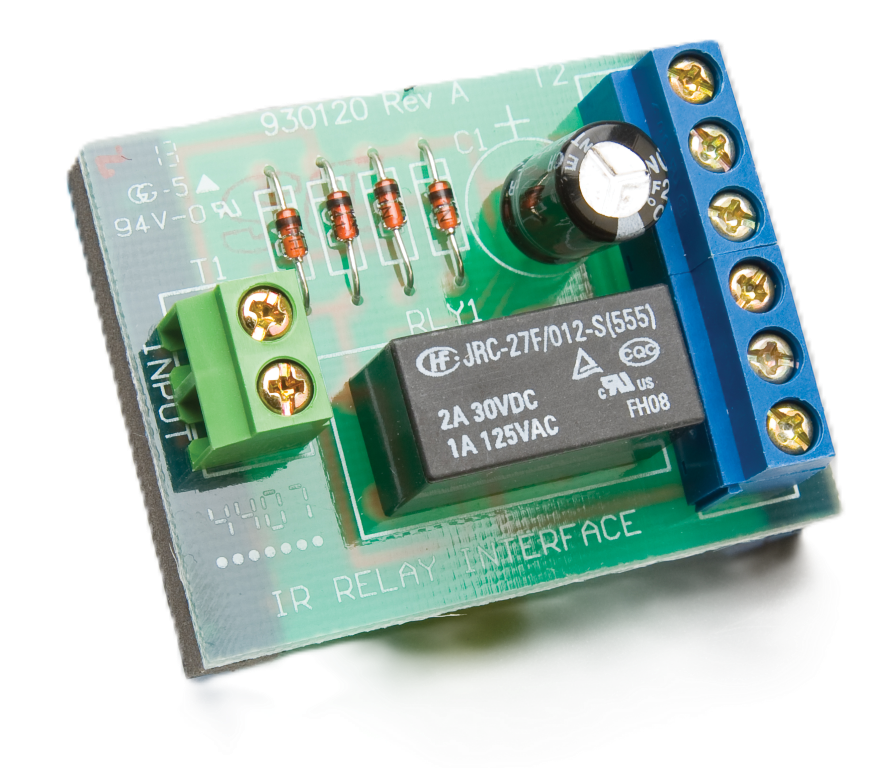

The 1 Amp Double-Pole, Double-Throw (DPDT) Relay Interface (P/N: 995085, Part No: 635085) provides low-voltage relay outputs for general-purpose interface applications such as warning devices (strobes), air-conditioning, process control, and access control including door locks. A single relay is provided with connections for two independent sets of contacts.

The relay can be switched by any Open Collector Auxiliary output capable of switching a minimum of 20mA. Ensure that the current required by the Relay Board is within the limits of the Module, Power Supply, or other Device used to power it.

Technical Specifications

ParameterValue
Input Voltage11V to 14V DC
Current Consumption15mA per relay (at 13.8V DC input)
Contact Rating1 Amp @ 24V DC (Resistive load)
Physical DimensionsLength: 48mm, Width: 38mm, Depth: 20mm (including adhesive strips)
Installation Environment0°C to 40°C, 15% to 85% Relative Humidity (non-condensing)

Terminal Layout

TerminalLabelFunction
T112V Trigger InputNon-polarized trigger input terminals. Accepts open-collector auxiliary output or siren output from Model 3000/Access 4000 modules.
T2Relay Output ContactsTwo independent sets: Common (COM), Normally Open (NO), and Normally Closed (NC) per set.

T2 Contact Arrangement

NC  NO  COM    |    NC  NO  COM
  Set 1              Set 2

Kit Contents

The Double-Pole Relay Board Kit includes:

  • Relay PCB sub-assembly with self-adhesive strips.
  • Installation notes.

Installation

Mounting

  • The Relay Interface can be mounted in a convenient location using the attached self-adhesive strips.

Wiring

  1. Connect one of the T1 terminals to DET+ on a Model 3000/Access 4000 Module, or the +12V output of a separate 12V Power Supply. (T1 connections are not polarity-conscious.)
  2. Connect the other T1 terminal to the required Auxiliary Output on the host Module.

Note: This Relay Interface has a special input circuit that also allows T1 to be connected directly to a Model 3000 / Access 4000 Siren output.

Important Notes

  • If a separate Power Supply is used to power the Relay Interface, ensure a common Negative connection is provided between the Power Supply and the Module used to control the relay.
  • Ensure that any Relay boards plus other devices powered from the Module or separate Power Supply do not exceed the maximum auxiliary current allowed.
