Mobile Access Keypad
Overview

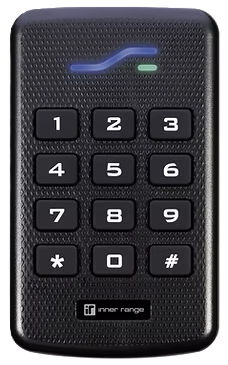

A combined Bluetooth-enabled, IP67-rated Keypad and Smart Card reader. Supports dual-credential access (Card & PIN) using both Bluetooth mobile technology and encrypted SIFER (MIFARE DESFire EV1/EV2/EV3) formats. Part numbers: 994725 (Standard), 994725MF (Multi-format), 994726 (Mobile Access).
Key Specifications
- Encryption: 128-bit AES via RS485 LAN multi-drop (OSDP Superset).
- Protocol: RS485 LAN Multi-drop (OSDP Superset).
- Formats: MIFARE DESFire EV1/EV2/EV3; Multi-format version also reads CSN/UID from other 13.56MHz formats.
- Environment: IP67 rated, fully potted, Vandal Resistant.
- Operating Temperature: -25°C to +65°C (-13°F to +149°F).
- Dimensions: 63(W) x 106(L) x 19(D) mm.
- Mounting Surface: Optimised for flat non-metallic surfaces. Metallic surfaces reduce read range; use an 8mm non-metallic spacer.
Supported Platforms
- Integriti (up to 16 per IAC/ILAM, 4 per SLAM).
- Inception (up to 8 on-board).
Firmware Compatibility
| Product | Standard/MF (Min) | Mobile Access (Min) |
|---|---|---|
| ISC / IAC | V16.01 | V23.1 |
| ILAM | V2.0 | V4.1.0 |
| SLAM | V2.0 | V4.0.7 |
| Inception Controller | V1.3.5 | V6.1.0 |
| Integriti Software | V16.0 | V23.1 |
Physical I/O
- Keypad: Backlit auto-dimming silicon rubber.
- Indicators: 2 RGB LEDs (23 selectable colours), Audible Buzzer (DOTL capable).
- Tamper: Optical tamper sensor.
- Mounting: Optimised for flat non-metallic surfaces. Mobile Access version: keep reader and cabling at least 200mm from 100-240V AC mains wiring.
Power Requirements
- Voltage: 11V - 14V DC (<500mV ripple). Must be connected to a power-limited circuit.
- Current: 65mA - 115mA (Typical, depends on version & LED config), 165mA (Max).
Maximum Cabling Distances
| Configuration | Cable | Distance |
|---|---|---|
| 1 Reader (Power) | 2-Pair 7/0.2 (24AWG) | 100m |
| 1 Reader (Power) | 2-Pair 14/0.2 (21AWG) | 200m |
| 2 Readers (Power) | 3-Pair (2 pairs for V+/0V) | 100m |
| Data (A/B/0V) | Access Module to furthest Reader | 1000m |
| Total Data (per RDR RS485 LAN port) | — | 1000m |
Compatible Firmware
- Supports Over-the-wire firmware updates via Inner Range systems.
- Auto-discovery supported on all current Inner Range systems.
